SQ-10

Application Versatility
* Permanent coding of text, time and date, bar codes, serial numbering and more * Quick and easy installation for both stationary and moving products * Easily fits into production environments where space is limited * Laser head can be rotated 90° in less than 5 minutes

Reliable & Economical
* No ink/consumables for lower cost of ownership * Clean and eco-friendly coding system * Rugged cast aluminum controller body * IP54 rating ensures maximum reliability and uptime in demanding applications * Integrated key switch and interlock relay for increased safety on the production floor

High Quality Code Generation
* Scribing technology produces non-dot matrix, razor sharp marks on a variety of substrates * Ability to mix different fonts and logos in a single message * Discrete coding ability for anti-counterfeiting and traceability * Ideal coding alternative where CIJ systems are not practical

Easy to Start, Simple to Run
* All-in-one design for fast installation and line changes * Easy to use touchscreen software built right into controller * Optional 10” touchscreen controller for remote system programming where space is limited * Intuitive system includes focus finder and code area preview window on product during setup; enables initial laser marking setup within minutes * Easily configurable in a variety of angles with optional mobile stand * Optional fume extraction systems available that connect directly to SQ-Laser systems

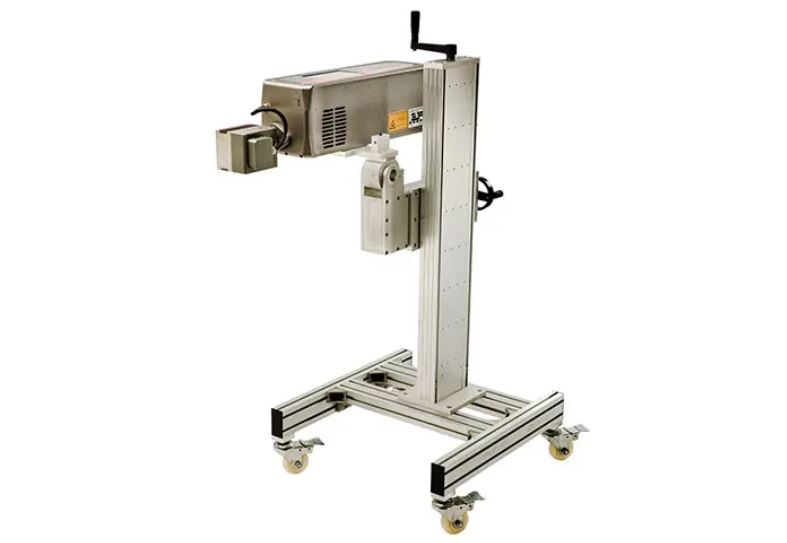

An optional heavy duty stand is available to simplify setup and install the system in a variety of configurations

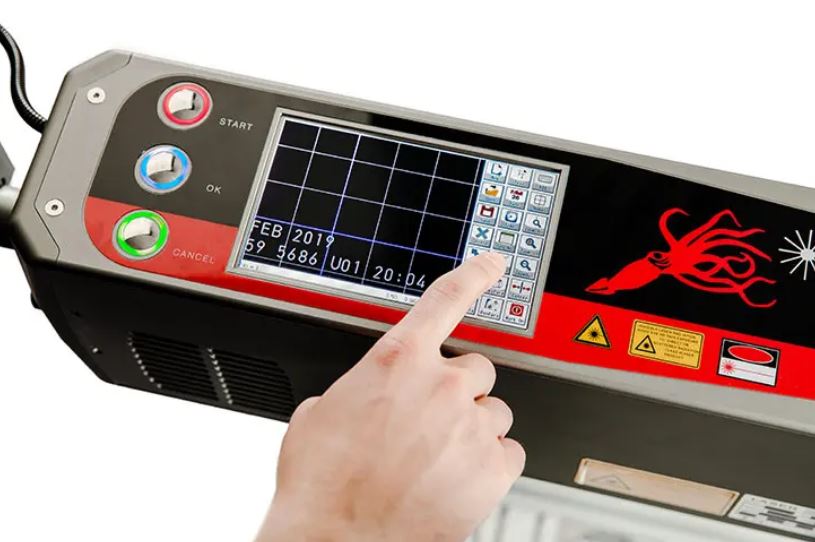

Easy to use touchscreen software is built right into the controller

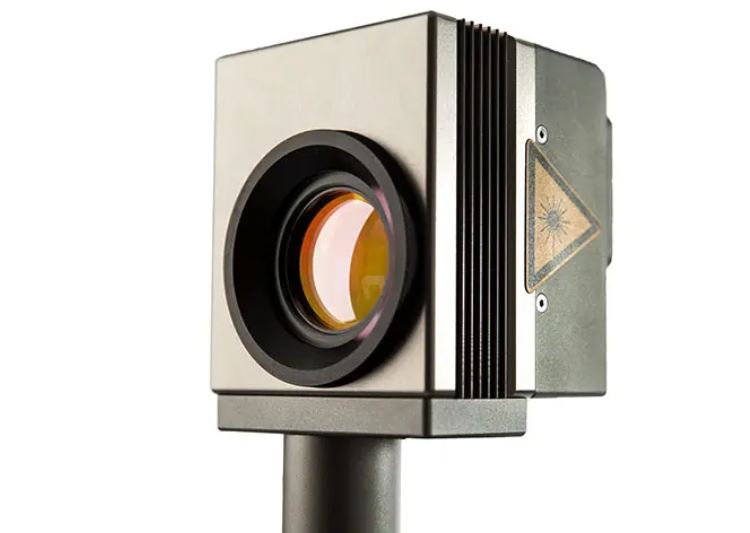

The laser head can be rotated 90 degrees in less than 5 minutes

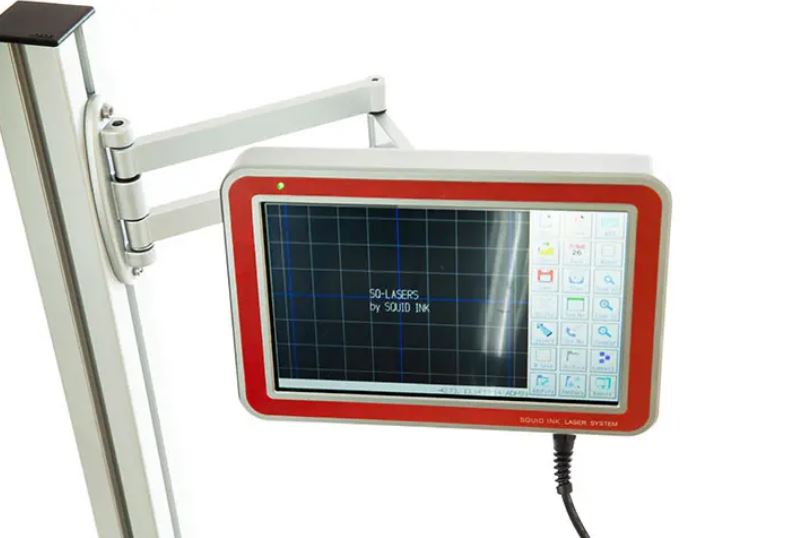

An optional 10” touchscreen controller allows system programming in limited space environments
System

  • Print Technology CO2 laser coding system, full sealed RF-excited metal tube
  • Laser Wavelength 10.6μm
  • Laser Galvanometer High-precision 2D high-speed scanning galvanometers
  • Cooling Method Atmospheric air-cooled
  • Dust Way Sealed
  • Power Consumption 500W – 1000W (110VAC, 60Hz)
  • Marking Focal Length 100mm – 190mm
  • Position Accuracy 0,01mm
  • Minimum Line Width 0,1 mm
  • Marking Area 50mm X 50mm – 175mm X 175mm
  • Assembly Line Speed Support <120m/min
  • Marking Speed 800 – 1000 characters/second
  • Character Size Adjustable in marking range
  • Marking Line Number Code Rotation – 0 to 360°
  • Software Features Counter, lot counter shift code, time and date, expiration date, 2D and linear bar codes
  • Safety Features Integrated key switch and interlock relay included for safety on the production floor; customer provided shielding necessary to prevent eye or skin exposure
  • Cabinet Dimensions 29” (74cm) L x 6.25” (16cm) W x 7.25” (19cm) H
  • Electrical Requirements 90 – 240VAC, 50/60Hz
  • Operating Environment 5°C – 40°C
  • Humidity Range 10 – 90% relative humidity, non-condensing
  • Packaged Weight 25kg
