CIJ JetStream

Designed to Increase Productivity
JetStream offers users the latest in today’s technology. The system’s simple to use 10.1” color touchscreen interface features a number of options to help users make their mark on a variety of products while streamlining their coding operation. JetStream’s intuitive software allows users to print database messages straight from a USB drive, allowing users to print messages with variable database information. Users also have the option of selecting up to 16 quick-load messages for lines that require quick message changeover. For messages with graphic elements, JetStream’s onboard software lets users make changes to graphics by utilizing the systems on-board graphic editor. With JetStream’s intelligent system software, you can print what you want, when you want it.

Minimized Maintenance
The JetStream is designed with the low maintenance features that users have come to rely on from Squid Ink. JetStream’s self-cleaning printhead with CleanJet™ maintenance routine allows quick and easy automatic start-up and shutdown. A simple press of a button commands the printer to go through a start-up cycle or flush the system for shutdown. When routine maintenance is required, components can be swapped out within minutes eliminating the need to purchase expensive filter and pump assemblies or schedule costly service calls. In addition, annual PMs can be made in minutes simply by swapping the entire ink system with an affordably priced refurbished system.

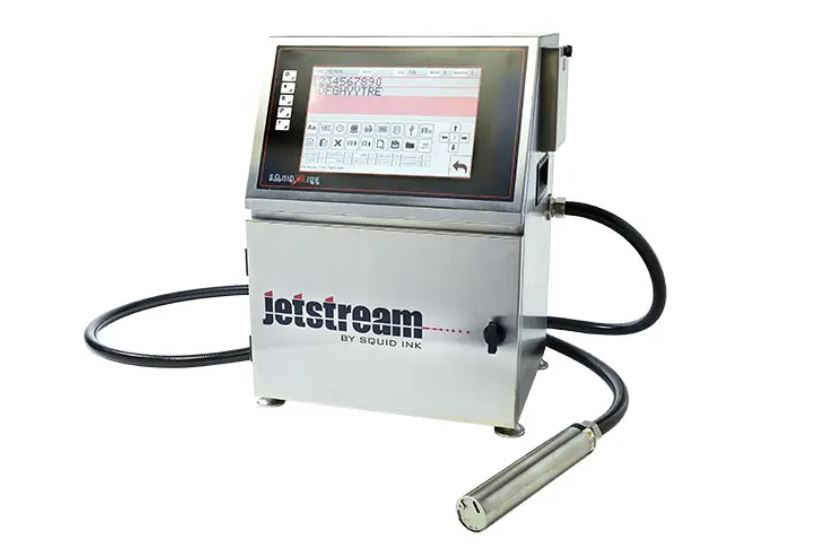

The system’s simple to use 10.1” color touchscreen interface features a number of options to help users make their mark.

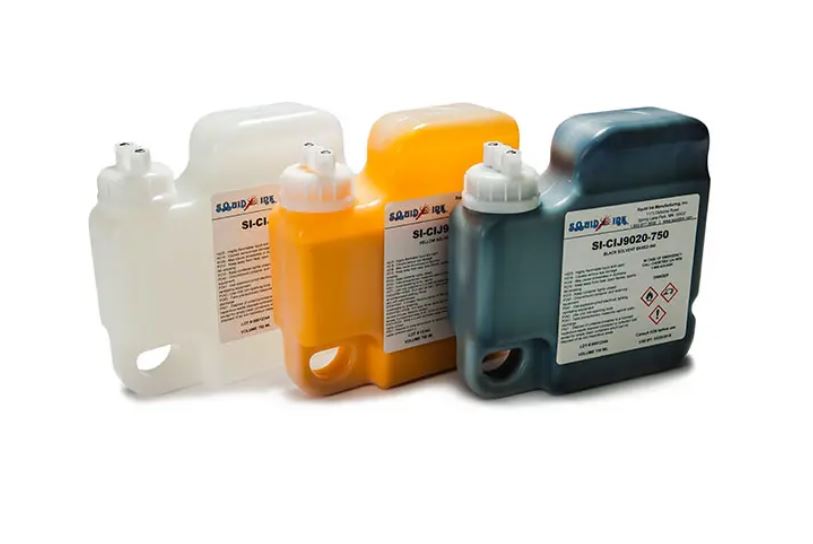

A comprehensive range of MEK, Acetone, or Ethanol-based inks are available for a variety of applications and industries.

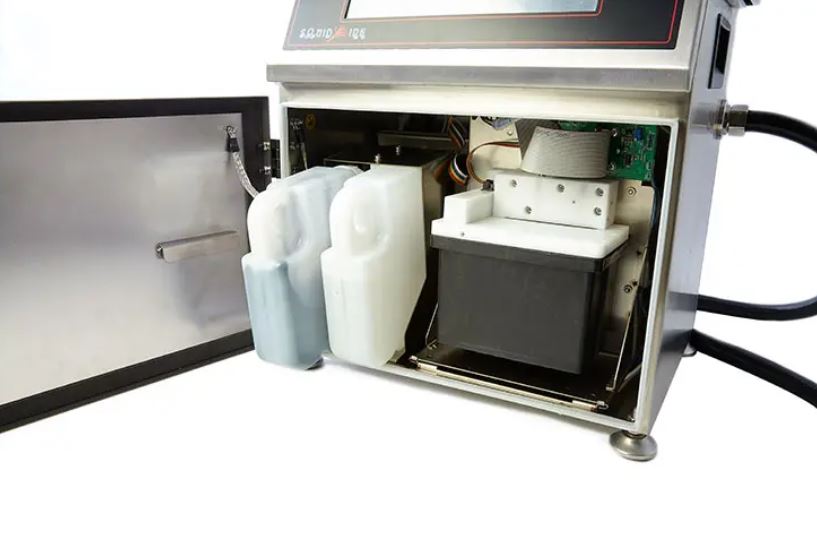

JetStream’s entire ink system can slide out for routine maintenance or it can be completely replaced in minutes for annual PMs.

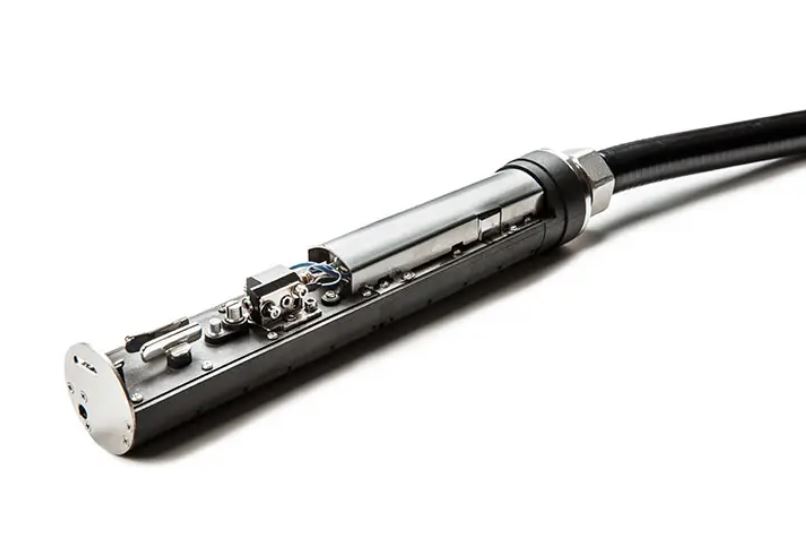

The JetStream printhead features CleanJet™ technology for automatic one button self-cleaning operation.

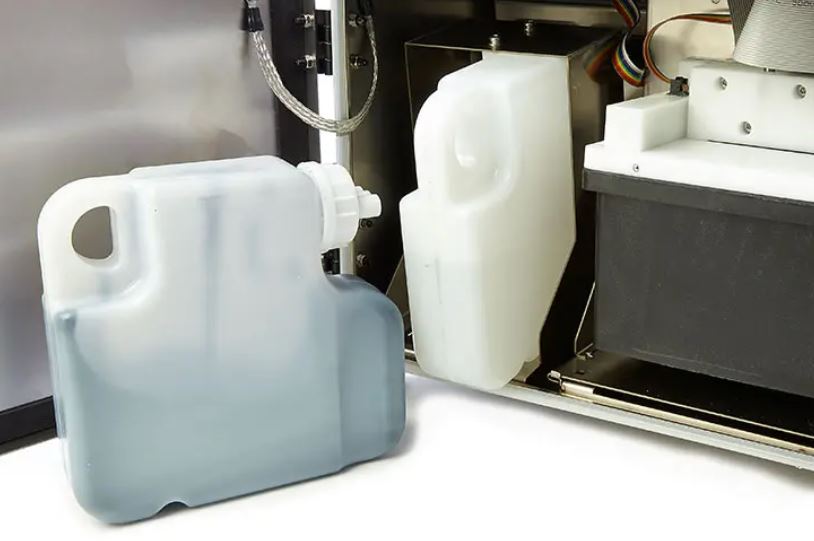

JetStream fluids are packaged in no-mess 750ml containers without the hassle of RFID chips or tags.
System

  • Print Technology Continuous Ink Jet
  • Nozzle Size 60μm nozzle standard
  • Print SpeedUp to 1,000 feet/minute (305m/min) 5×5 sigle line
  • Max Print Lines 5 lines @ 5×5 font, 4 lines @ 7×5 font matrix
  • Font Matrix Configurations 5×5, 7×5, 9×7, 12×12, 16×16, 24×24, 32×32
  • Character Height 0.07” – 0.59” (1.8mm – 15mm); up to 32 dot high font with single line of text
  • Throw Distance Up to 1.2” (30mm) distance from printhead to substrate
  • Display 1280×800, 10.1” LCD touchscreen
  • Message Storage 8GB
  • Software Features Bar codes, graphics, counter, lot counter, shift code, time and date, expiration date
  • Operating Features One button print start / stop, control print delay, reverse print, invert print, bold print, auto-start self-clean
  • CleanJet™ Quick and easy one button start/stop process for automatic self-cleaning operation
  • Communication Inputs Photocell/trigger, encoder, reverse print, BCD select, RS232, reset counter
  • Communication Outputs Alarm light (3-color), print ready, warning
  • Ports Encoder, photocell, serial and alarm beacon, I/O, network, and USB connections
  • Printhead Compact and durable stainless steel design, omni-directional print capability
  • Printhead Dimensions 9.25” (23.5cm) long, 1.5” (3.8cm) in diameter
  • Printhead Cable Vinyl-covered armored conduit; 9.8’ (3m) umbilical length standard; 13.1’ (4m) optional
  • Cabinet Construction Stainless steel cabinet
  • Cabinet Dimensions 19.3” (49cm) H x 14.6” (37cm) W x 12.2” (31cm) D
  • Electrical Requirements 90 – 240 VAC, 50/60Hz
  • Operating Environment 41°F – 113°F (5°C – 45°C)
  • Humidity Range 30 – 95% relative humidity, non-condensing
  • Weight 53 lbs. (24kg)
  • Inks Comprehensive range of inks for a variety of applications and industry requirements including MEK, Acetone, and Ethanol-base; colors and soft pigment formulations available; no chips or RFID tags to deal with
