CoPilot Max

Bigger Print, Better Print
Squid Ink’s CoPilot® Max printing system is designed to print superior quality hi-resolution characters on porous or non-porous surfaces. For applications that require immediate dry times on non-porous surfaces, the CoPilot Max also has the capability to run UV LED curable inks. With up to 2.8” of print height per printhead and the ability to run up to 2 printheads from one controller, the CoPilot Max offers a versatile, yet cost effective solution for your coding and marking applications.

Make Your Mark
CoPilot Max utilizes Squid Ink’s revolutionary active ink system, allowing users the ability to tilt or rotate the printhead in any direction without making height adjustments to the ink supply. The system prints hi-resolution characters, razor-sharp text, scannable bar codes and great looking logos at up to 360 dpi, nearly twice the resolution of competitive printers in its class.

Affordable Product Coding
The CoPilot Max lets users meet the GS1 barcode specification for less. CoPilot Max consumable costs are typically 1/10 of the cost of paper labels, and eliminate pre-printed cartons and SKUs of label inventory. Any way you look at it, Squid Ink’s CoPilot Max provides users with an affordable solution to meet their ink jet coding needs.

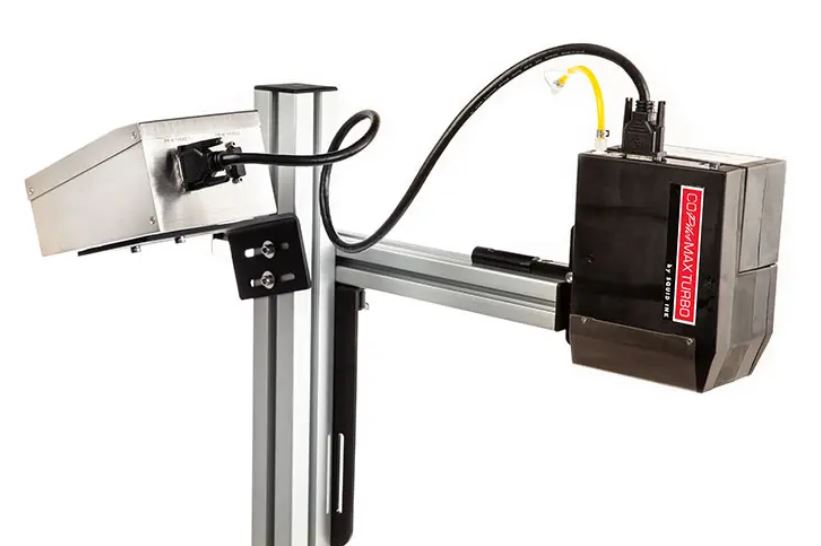

CoPilot Max’s revolutionary active ink system allows conversion to downshooter mode in seconds.

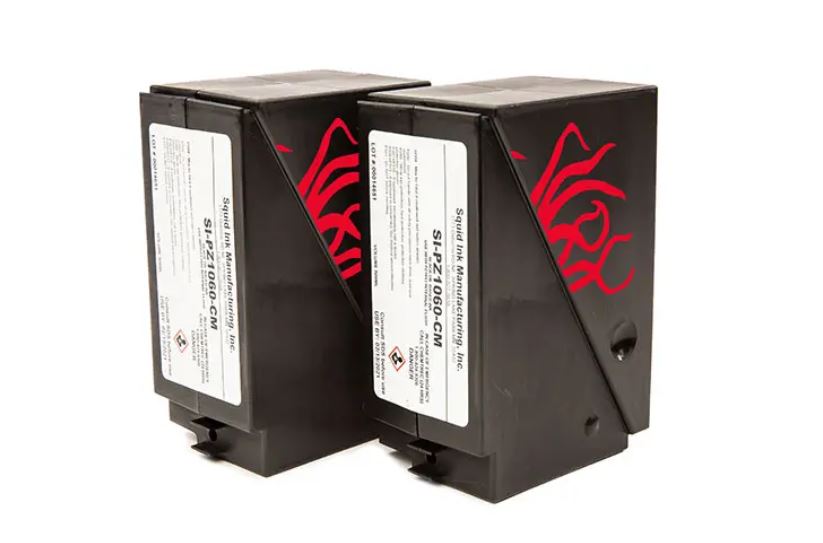

Squid Ink’s proven inks and fluids are available in large 500ml no-mess cartridges.
The CoPilot Max utilizes oil- based, solvent-based, or UV curable inks for printing on a wide range of porous or non-porous substrates.

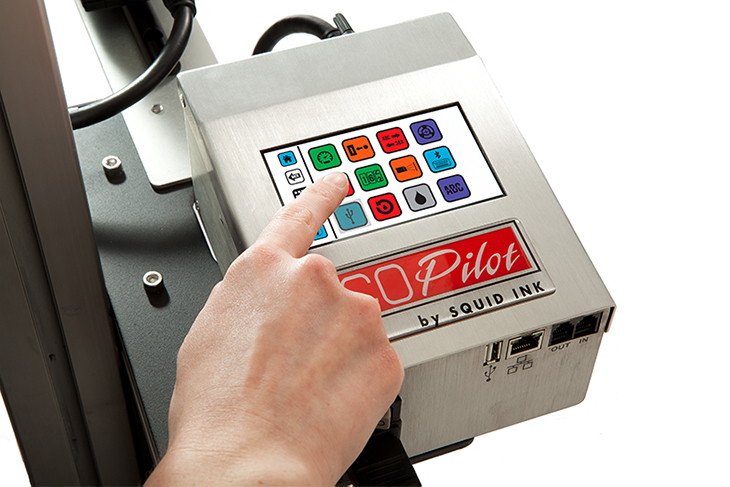

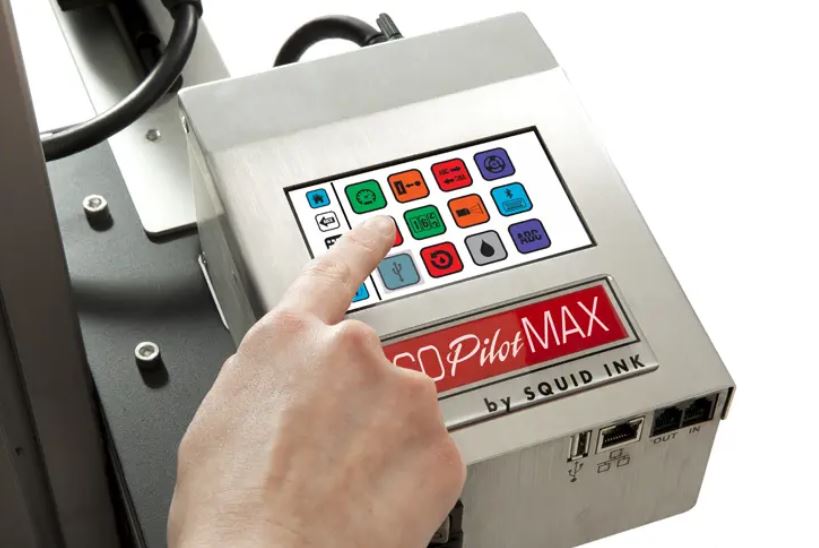

A 4.3” full color touchscreen provides access to the system’s internal messages and print functions.
System

  • Print Technology Piezo impulse printhead technology
  • Vertical Print Resolution 185 dpi capable of printing razor-sharp graphics, small character text, and scannable bar codes
  • Horizontal Print Resolution 205 dpi
  • Print Speed Up to 250 feet/min. (76m/min.) @ 205 dpi
  • Time & Date Internal real time clock with battery back-up
  • Product Sensor External diffuse beam photocell standard
  • Communication Interface One USB host and one Ethernet input
  • Touchscreen 4.3” (10.9 cm) full color touchscreen display
  • Ink Cartridge Volume 500ml cartridge or bag
  • Low Ink Indicator Message alert on touchscreen, LED light beacon optional
  • Substrate Capabilities Porous or Non-Porous surfaces
  • Electrical Requirements 100 – 240 VAC, 50/60 Hz
  • Operating Environment 1° – 40°C
  • Agency Certifications CE, TUV pending
  • Maximum Print Height 2.1” per printhead, 4.2” total
Software

  • Time & Date Full time and date functionality including expiration date and Julian Dates.
  • Item Numbering Sixteen counters, one of which can be a daily counter.
  • Shift Codes Four programmable shift codes with automatic rollover
  • Bar Codes All standard bar codes including 2D
  • Fonts Arial, Arial Bold, Courier, Tahoma Bold and Lucida resident fonts for use in variable data elements. Static elements in any Windows® font
  • Logos Most image files supported with Orion Graphical Interface Software
  • Printing Features Reverse, invert, rotate, repeat. Print on/off button
  • Message Length Up to 180”
  • Number of Messages 1GB storage space will store approximately 1000+ messages
  • Ink Usage Show in Orion™ PC Software
  • User Data Prompts Prompts for user input at start of print job by manual input on touchscreen
