CoPilot 128

The CoPilot 128 Hi-Resolution Printing System

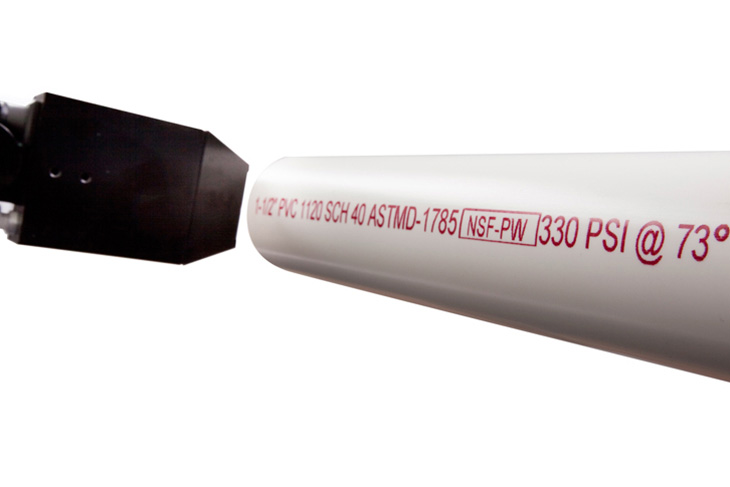

The CoPilot 128 ink jet printing system offers the durability, versatility and productivity that you have come to rely on from Squid Ink. Whether you are printing lot codes on coated cartons, bar codes on corrugate cases, or product information and logos on PVC pipe you’re sure to find the right solution with Squid Ink’s new CoPilot 128.

Industrial Design, User Flexibility
The system is capable of running oil-based or solvent-based inks to print up to 185 dpi at 135ft /min on a variety of substrates. For non-porous applications, users have the option of utilizing Squid Ink’s solvent-based inks to print a number of pigmented inks on a variety of non-porous products like, coated cartons, plastics, glass, shrink wrap, metals, and more. Squid Ink’s PZ-1000 ink for porous substrates offers low-maintenance performance, eliminating the need for auto-priming functions and offering better ink utilization than competitive systems.

Maximize Your Uptime
The CoPilot 128 is designed to meet the harsh demands of your application. The printer features a durable touchscreen, industrial strength printhead construction, and print engines designed for industrial applications, not office applications. You can be confident that CoPilot 128’s rugged design will withstand the most abusive industrial environments while providing superior quality print. The CoPilot also features a large 500ml cartridge or bag ink system. The generous ink volume allows users to keep their line running, reducing downtime and maximizing ROI.

The CoPilot 128 utilizes oil-based or solvent-based inks for printing on a wide range of porous or non-porous substrates.

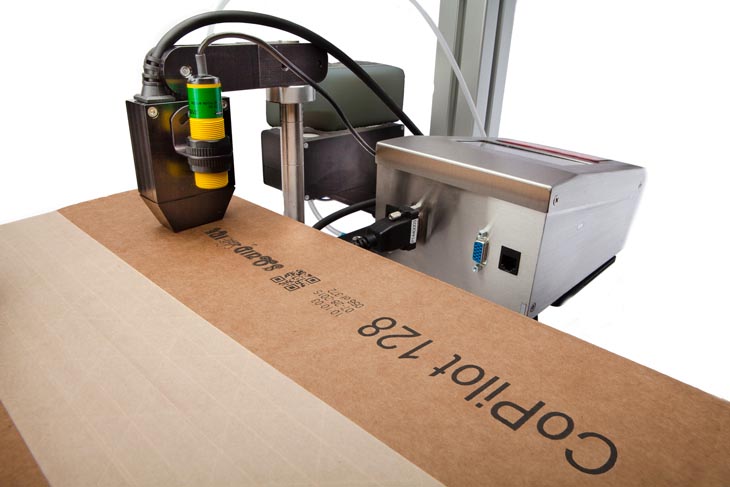

The system has the flexibility to be configured to print horizontally, at an angle, or in down shooter position.

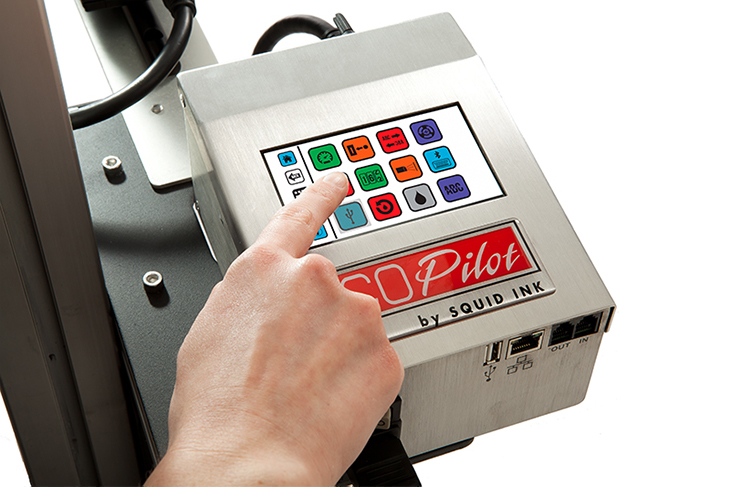

A 4.3" full color touchscreen provides access to the systems internal messages and print functions.

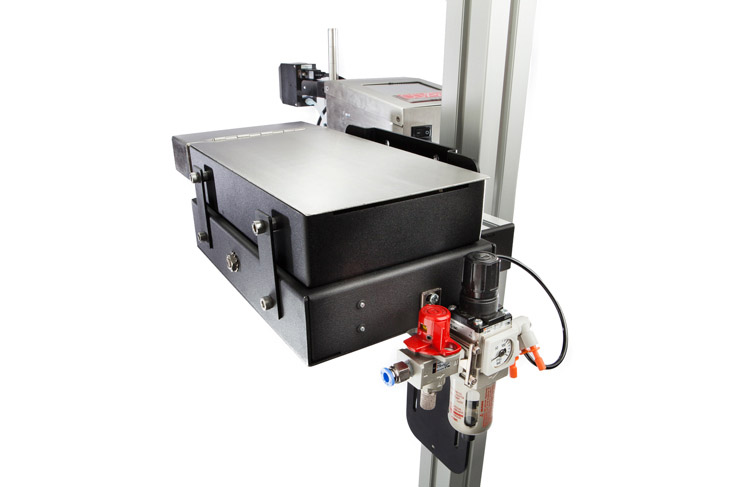

The bag ink agitator system is an ideal solution for users printing with pigmented inks.
System

  • Print Technology Piezo impulse printhead technology
  • Maximum Print Height .7” (1.8 cm) per printhead
  • Vertical Print Resolution 185 dpi capable of printing razor-sharp graphics, small character text, and scannable bar codes
  • Horizontal Print Resolution 205 dpi
  • Print Speed Up to 135 feet/min. (41 m/min.) @ 205 dpi
  • Time & Date Internal real time clock with battery back-up
  • Product Sensor External diffuse beam photocell standard
  • Communication Interface One USB host and one Ethernet input
  • Touchscreen 4.3” (10.9 cm) full color touchscreen display
  • Ink Cartridge Volume 500ml cartridge or bag
  • Low Ink Indicator Message alert on touchscreen, LED light beacon optional
  • Substrate Capabilities Porous or Non-Porous surfaces
  • Electrical Requirements 100 – 240 VAC, 50/60 Hz
  • Operating Environment 1° – 40°C
  • Agency Certifications CE, TUV pending
Software

  • Time & Date Full time and date functionality including expiration date and Julian Dates.
  • Item Numbering Sixteen counters, one of which can be a daily counter.
  • Shift Codes Four programmable shift codes with automatic rollover
  • Bar Codes All standard bar codes including 2D
  • Fonts Arial, Arial Bold, Courier, Tahoma Bold and Lucida resident fonts for use in variable data elements. Static elements in any Windows® font
  • Logos Most image files supported with Orion Graphical Interface Software
  • Printing Features Reverse, invert, rotate, repeat. Print on/off button
  • Message Length Up to 180”
  • Number of Messages 1GB storage space will store approximately 1000+ messages
  • Ink Usage Shown in Orion™ PC Software
  • User Data Prompts Prompts for user input at start of print job by manual input on touchscreen
